Cadillac Escalade Oil Capacity (2000 - 2022)
Cadillac Escalade Oil Capacity Overview
The Cadillac Escalade engine oil capacity is between 6.0 quarts (5.7 liters) and 8.0 quarts (7.6 liters) depending on the engine and model year.
For example:
- the 2014 Cadillac Escalade, with the 5.7L L94 Flex 8 Cyl. engine, has an engine oil capacity of 6.0 quarts (5.7 liters).
- the 2022 Cadillac Escalade, with the 7.6L L87 8 Cyl. engine, has an engine oil capacity of 8.0 quarts (7.6 liters).
- the 2022 Cadillac Escalade, with the 6.6L LM2 Diesel Turbo 6 Cyl. engine, has an engine oil capacity of 7.0 quarts (6.6 liters).
Check out the Oil Capacity specifications for other makes and models.
2022 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2022 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2022 Cadillac Escalade here.
2022 Cadillac Escalade Engine Oil Capacities
The 2022 Cadillac Escalade engine oil capacities are as follows: the 3.0L LM2 Diesel Turbo 6 Cyl. engine engine has a capacity of 7.0 quarts, and the 6.2L L87 8 Cyl. engine engine has a capacity of 8.0 quarts respectively.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 3.0L 6 Cyl. LM2 Diesel Turbo | 7.0 Quarts | 6.6 Liters | 0W-20 |
| 6.2L 8 Cyl. L87 | 8.0 Quarts | 7.6 Liters | 0W-20 |
2022 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2022 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 11.6 quarts and 12 quarts.
The table below shows the automatic transmission oil capacities for the 2022 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 3.0L 6 Cyl. LM2 Diesel Turbo | 10 Spd Trans Only 10L80 | 8.1 Quarts | 11.6 Quarts | 7.7 Liters | 11 Liters |
| 3.0L 6 Cyl. LM2 Diesel Turbo | 10 Spd With Cooler 10L80 | 12 Quarts | 11.4 Liters | ||
| 6.2L 8 Cyl. L87 | 10 Spd Trans Only 10L80 | 11.6 Quarts | 11 Liters | ||
| 6.2L 8 Cyl. L87 | 10 Spd With Cooler 10L80 | 8.1 Quarts | 12 Quarts | 7.7 Liters | 11.4 Liters |
2022 Cadillac Escalade Front Differential Oil Capacities
The 2022 Cadillac Escalade has a front differential oil capacity of 2.1 pints.
| Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|
| 2.1 Pints | 1 Liters |
2022 Cadillac Escalade Transfer Case Oil Capacities
The 2022 Cadillac Escalade has a transfer case oil capacity of 3.2 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| MP3015, 25 | 3.2 Pints | 1.5 Liters |
AutoPadre Comparison Tool
Easily Compare Specifications Side-By-Side.
2021 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2021 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2021 Cadillac Escalade here.
2021 Cadillac Escalade Engine Oil Capacities
The 2021 Cadillac Escalade engine oil capacities are as follows: the 3.0L LM2 Diesel Turbo 6 Cyl. engine engine has a capacity of 7.0 quarts, and the 6.2L L87 8 Cyl. engine engine has a capacity of 8.0 quarts respectively.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 3.0L 6 Cyl. LM2 Diesel Turbo | 7.0 Quarts | 6.6 Liters | 0W-20 |
| 6.2L 8 Cyl. L87 | 8.0 Quarts | 7.6 Liters | 0W-20 |
2021 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2021 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 11.6 quarts and 12 quarts.
The table below shows the automatic transmission oil capacities for the 2021 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 3.0L 6 Cyl. LM2 Diesel Turbo | 10 Spd Trans Only 10L80 | 11.6 Quarts | 11 Liters | ||
| 3.0L 6 Cyl. LM2 Diesel Turbo | 10 Spd With Cooler 10L80 | 8.1 Quarts | 12 Quarts | 7.7 Liters | 11.4 Liters |
| 6.2L 8 Cyl. L87 | 10 Spd Trans Only 10L80 | 8.1 Quarts | 11.6 Quarts | 7.7 Liters | 11 Liters |
| 6.2L 8 Cyl. L87 | 10 Spd With Cooler 10L80 | 12 Quarts | 11.4 Liters |
2021 Cadillac Escalade Front Differential Oil Capacities
The 2021 Cadillac Escalade has a front differential oil capacity of 2.1 pints.
| Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|
| 2.1 Pints | 1 Liters |
2021 Cadillac Escalade Transfer Case Oil Capacities
The 2021 Cadillac Escalade has a transfer case oil capacity of 3.2 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| MP3015, 25 | 3.2 Pints | 1.5 Liters |

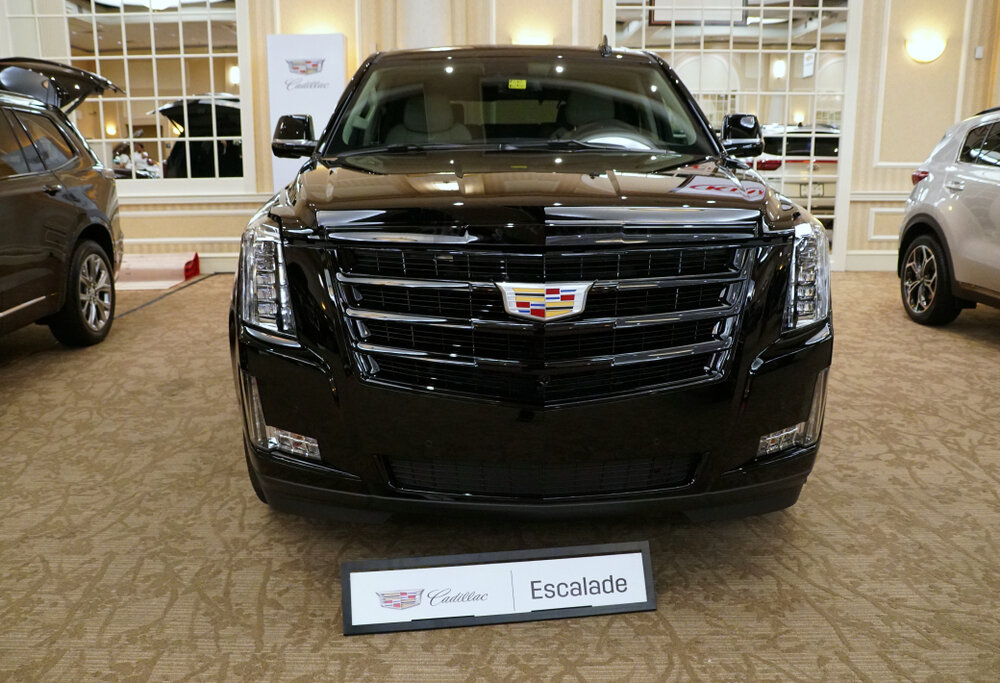

2020 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2020 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2020 Cadillac Escalade here.
2020 Cadillac Escalade Engine Oil Capacities
The 2020 Cadillac Escalade engine oil capacity is 8.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.2L 8 Cyl. L86 | 8.0 Quarts | 7.6 Liters | 0W-20 |
| 6.2L 8 Cyl. L86 Flex | 8.0 Quarts | 7.6 Liters | 0W-20 |
2020 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2020 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 11.6 quarts and 12 quarts.
The table below shows the automatic transmission oil capacities for the 2020 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.2L 8 Cyl. L86 | 10 Spd Trans Only 10L80 | 8.1 Quarts | 11.6 Quarts | 7.7 Liters | 11 Liters |
| 6.2L 8 Cyl. L86 | 10 Spd With Cooler 10L80 | 12 Quarts | 11.4 Liters | ||
| 6.2L 8 Cyl. L86 Flex | 10 Spd Trans Only 10L80 | 11.6 Quarts | 11 Liters | ||
| 6.2L 8 Cyl. L86 Flex | 10 Spd With Cooler 10L80 | 8.1 Quarts | 12 Quarts | 7.7 Liters | 11.4 Liters |
2020 Cadillac Escalade Front Differential Oil Capacities
The 2020 Cadillac Escalade has a front differential oil capacity of 3 pints.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 8.25 RG | 3 Pints | 1.4 Liters |
2020 Cadillac Escalade Transfer Case Oil Capacities
The 2020 Cadillac Escalade has a transfer case oil capacity of 3.2 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| MP3023, 24, 10 | 3.2 Pints | 1.5 Liters |
Side-By-Side Comparisons
Cadillac Escalade Oil Capacity By Year

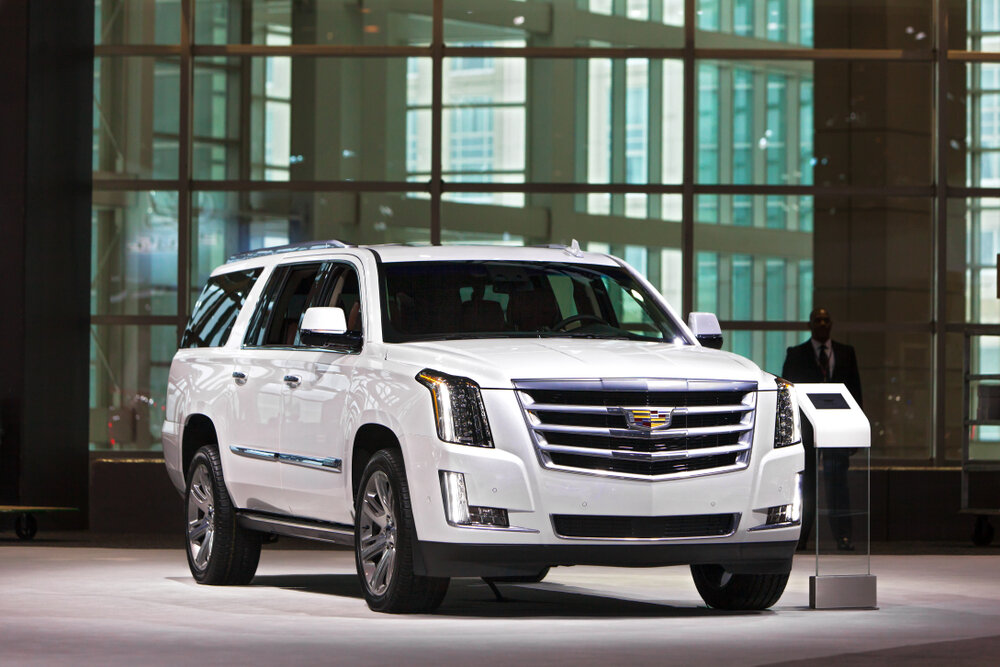

2019 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2019 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2019 Cadillac Escalade here.
2019 Cadillac Escalade Engine Oil Capacities
The 2019 Cadillac Escalade engine oil capacity is 8.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.2L 8 Cyl. L86 | 8.0 Quarts | 7.6 Liters | 0W-20 |
| 6.2L 8 Cyl. L86 Flex | 8.0 Quarts | 7.6 Liters | 0W-20 |
2019 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2019 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 11.6 quarts and 12 quarts.
The table below shows the automatic transmission oil capacities for the 2019 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.2L 8 Cyl. L86 | 10 Spd With Cooler 10L80 | 8.1 Quarts | 12 Quarts | 7.7 Liters | 11.4 Liters |
| 6.2L 8 Cyl. L86 | 10 Spd With O Cooler 10L80 | 11.6 Quarts | 11 Liters | ||
| 6.2L 8 Cyl. L86 Flex | 10 Spd With Cooler 10L80 | 12 Quarts | 11.4 Liters | ||
| 6.2L 8 Cyl. L86 Flex | 10 Spd With O Cooler 10L80 | 8.1 Quarts | 11.6 Quarts | 7.7 Liters | 11 Liters |
2019 Cadillac Escalade Front Differential Oil Capacities
The 2019 Cadillac Escalade has a front differential oil capacity of 3 pints.
| Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|
| 3 Pints | 1.4 Liters |
2019 Cadillac Escalade Transfer Case Oil Capacities
The 2019 Cadillac Escalade has a transfer case oil capacity of 3.2 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| MP3023, 24 | 3.2 Pints | 1.5 Liters |

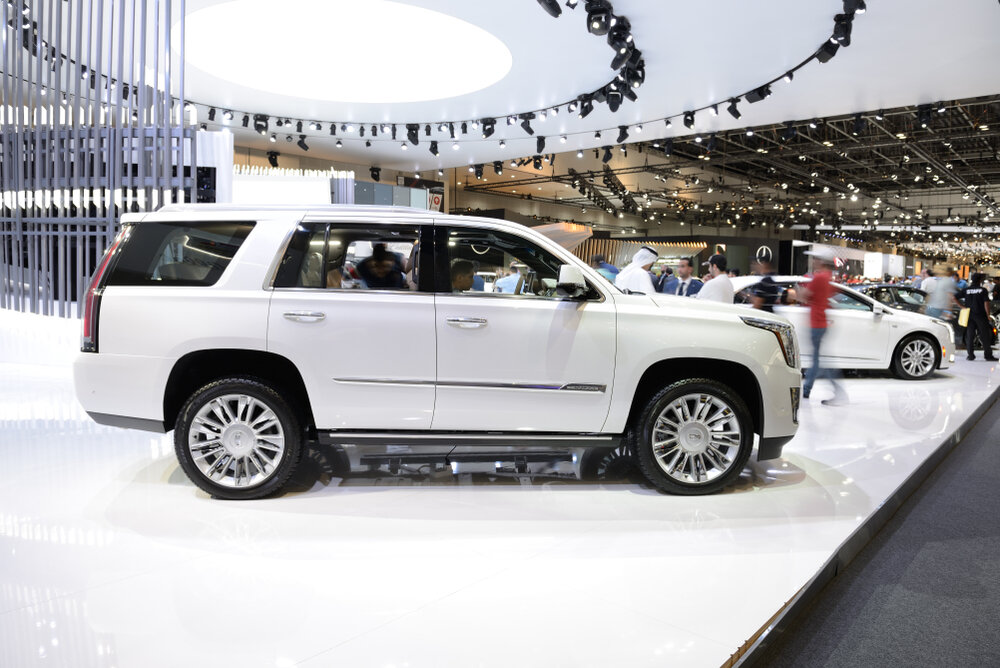

2018 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2018 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2018 Cadillac Escalade here.
2018 Cadillac Escalade Engine Oil Capacities
The 2018 Cadillac Escalade engine oil capacity is 8.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.2L 8 Cyl. L86 | 8.0 Quarts | 7.6 Liters | 0W-20 |
| 6.2L 8 Cyl. L86 Flex | 8.0 Quarts | 7.6 Liters | 0W-20 |
2018 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2018 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 11.6 quarts and 12 quarts.
The table below shows the automatic transmission oil capacities for the 2018 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.2L 8 Cyl. L86 | 10 Spd With Cooler 10L80 | 12 Quarts | 11.4 Liters | ||
| 6.2L 8 Cyl. L86 | 10 Spd With O Cooler 10L80 | 8.1 Quarts | 11.6 Quarts | 7.7 Liters | 11 Liters |
| 6.2L 8 Cyl. L86 Flex | 10 Spd With Cooler 10L80 | 12 Quarts | 11.4 Liters | ||
| 6.2L 8 Cyl. L86 Flex | 10 Spd With O Cooler 10L80 | 8.1 Quarts | 11.6 Quarts | 7.7 Liters | 11 Liters |
2018 Cadillac Escalade Front Differential Oil Capacities
The 2018 Cadillac Escalade has a front differential oil capacity of 3 pints.
| Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|
| 3 Pints | 1.4 Liters |
2018 Cadillac Escalade Transfer Case Oil Capacities
The 2018 Cadillac Escalade has a transfer case oil capacity of 3.2 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| MP3023, 24 | 3.2 Pints | 1.5 Liters |
2017 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2017 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2017 Cadillac Escalade here.
2017 Cadillac Escalade Engine Oil Capacities
The 2017 Cadillac Escalade engine oil capacity is 8.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.2L 8 Cyl. L86 | 8.0 Quarts | 7.6 Liters | 0W-20 |
| 6.2L 8 Cyl. L86 Flex | 8.0 Quarts | 7.6 Liters | 0W-20 |
2017 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2017 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 10.9 quarts and 11.4 quarts.
The table below shows the automatic transmission oil capacities for the 2017 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.2L 8 Cyl. L86 | 8 Spd With Cooler 8L90 | 11.4 Quarts | 10.8 Liters | ||
| 6.2L 8 Cyl. L86 | 8 Spd With O Cooler 8L90 | 7.4 Quarts | 10.9 Quarts | 7 Liters | 10.3 Liters |
| 6.2L 8 Cyl. L86 Flex | 8 Spd With Cooler 8L90 | 11.4 Quarts | 10.8 Liters | ||
| 6.2L 8 Cyl. L86 Flex | 8 Spd With O Cooler 8L90 | 7.4 Quarts | 10.9 Quarts | 7 Liters | 10.3 Liters |
2017 Cadillac Escalade Front Differential Oil Capacities
The 2017 Cadillac Escalade has a front differential oil capacity of 3 pints.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 8.25 RG | 3 Pints | 1.4 Liters |
2017 Cadillac Escalade Transfer Case Oil Capacities
The 2017 Cadillac Escalade has a transfer case oil capacity of 3.2 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| MP3023, 24 | 3.2 Pints | 1.5 Liters |

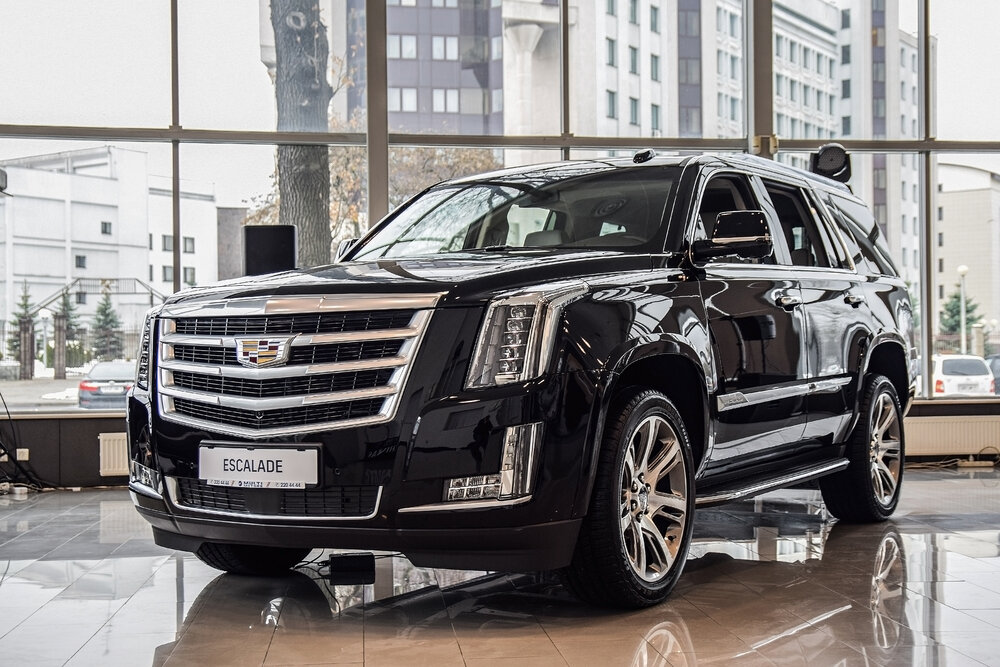

2016 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2016 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2016 Cadillac Escalade here.
2016 Cadillac Escalade Engine Oil Capacities
The 2016 Cadillac Escalade engine oil capacity is 8.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.2L 8 Cyl. L86 | 8.0 Quarts | 7.6 Liters | 0W-20 |
| 6.2L 8 Cyl. L86 Flex | 8.0 Quarts | 7.6 Liters | 0W-20 |
2016 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2016 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 10.9 quarts and 11.4 quarts.
The table below shows the automatic transmission oil capacities for the 2016 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.2L 8 Cyl. L86 | 8 Spd With Cooler 8L90 | 7.4 Quarts | 11.4 Quarts | 7 Liters | 10.8 Liters |
| 6.2L 8 Cyl. L86 | 8 Spd With O Cooler 8L90 | 10.9 Quarts | 10.3 Liters | ||
| 6.2L 8 Cyl. L86 Flex | 8 Spd With Cooler 8L90 | 7.4 Quarts | 11.4 Quarts | 7 Liters | 10.8 Liters |
| 6.2L 8 Cyl. L86 Flex | 8 Spd With O Cooler 8L90 | 10.9 Quarts | 10.3 Liters |
2016 Cadillac Escalade Front Differential Oil Capacities
The 2016 Cadillac Escalade has a front differential oil capacity of 3 pints.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 8.25 RG | 3 Pints | 1.4 Liters |
2016 Cadillac Escalade Transfer Case Oil Capacities
The 2016 Cadillac Escalade has a transfer case oil capacity of 3.2 pints for all configurations.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| MP3010-NP0 | 3.2 Pints | 1.5 Liters |
| MP3023, 24 | 3.2 Pints | 1.5 Liters |
2015 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2015 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2015 Cadillac Escalade here.
2015 Cadillac Escalade Engine Oil Capacities
The 2015 Cadillac Escalade engine oil capacity is 8.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.2L 8 Cyl. L86 | 8.0 Quarts | 7.6 Liters | 0W-20 |
| 6.2L 8 Cyl. L86 Flex | 8.0 Quarts | 7.6 Liters | 0W-20 |
2015 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2015 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 7.4 quarts and 12.4 quarts.
The table below shows the automatic transmission oil capacities for the 2015 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.2L 8 Cyl. L86 | 6 Spd LD 6L80 | 6 Quarts | 12.2 Quarts | 5.7 Liters | 11.5 Liters |
| 6.2L 8 Cyl. L86 | 6 Spd With HD Cool 6L80 | 12.4 Quarts | 11.7 Liters | ||
| 6.2L 8 Cyl. L86 | 8 Spd With Cooler 8L90 | 11.4 Quarts | 10.8 Liters | ||
| 6.2L 8 Cyl. L86 | 8 Spd With O Cooler 8L90 | 10.9 Quarts | 7.4 Quarts | 10.3 Liters | 7 Liters |
| 6.2L 8 Cyl. L86 Flex | 6 Spd LD 6L80 | 6 Quarts | 12.2 Quarts | 5.7 Liters | 11.5 Liters |
| 6.2L 8 Cyl. L86 Flex | 6 Spd With HD Cool 6L80 | 12.4 Quarts | 11.7 Liters | ||
| 6.2L 8 Cyl. L86 Flex | 8 Spd With Cooler 8L90 | 11.4 Quarts | 10.8 Liters | ||
| 6.2L 8 Cyl. L86 Flex | 8 Spd With O Cooler 8L90 | 10.9 Quarts | 7.4 Quarts | 10.3 Liters | 7 Liters |
2015 Cadillac Escalade Front Differential Oil Capacities
The 2015 Cadillac Escalade has a front differential oil capacity of 3 pints.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 8.25 RG | 3 Pints | 1.4 Liters |
2015 Cadillac Escalade Transfer Case Oil Capacities
The 2015 Cadillac Escalade has a transfer case oil capacity of 3.2 pints for all configurations.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| MP 3010-NP0 | 3.2 Pints | 1.5 Liters |
| MP3023, 24 | 3.2 Pints | 1.5 Liters |
2014 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2014 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2014 Cadillac Escalade here.
2014 Cadillac Escalade Engine Oil Capacities
The 2014 Cadillac Escalade engine oil capacity, with the 6.2L L94 Flex 8 Cyl. engine engine, is 6.0 quarts.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.2L 8 Cyl. L94 Flex | 6.0 Quarts | 5.7 Liters | 5W-30 |
2014 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2014 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 12.2 quarts and 12.4 quarts.
The table below shows the automatic transmission oil capacities for the 2014 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.2L 8 Cyl. L94 Flex | 6 Spd With HD Cool 6L80 | 6 Quarts | 12.4 Quarts | 5.7 Liters | 11.7 Liters |
| 6.2L 8 Cyl. L94 Flex | 6 Spd With O HD Cool 6L80 | 12.2 Quarts | 11.5 Liters |
2014 Cadillac Escalade Front Differential Oil Capacities
The 2014 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2014 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2014 Cadillac Escalade Transfer Case Oil Capacities
The 2014 Cadillac Escalade has a transfer case oil capacity of 3.2 pints for all configurations.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| MP 3010-NP0 | 3.2 Pints | 1.5 Liters |
| MP 3023/3024 | 3.2 Pints | 1.5 Liters |
Learn from AutoPadre himself!
Want to maximize the value of your vehicle? All while making it more enjoyable to drive in the meantime?
Learn how from AutoPadre in our car care guide!
Includes 5 easy tips to potentially earn $1000's more when you sell or trade-in your vehicle!
2013 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2013 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2013 Cadillac Escalade here.
2013 Cadillac Escalade Engine Oil Capacities
The 2013 Cadillac Escalade engine oil capacity is 6.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.0L 8 Cyl. LZ1 | 6.0 Quarts | 5.7 Liters | 5W-30 |
| 6.2L 8 Cyl. L94 Flex | 6.0 Quarts | 5.7 Liters | 5W-30 |
2013 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2013 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 12.4 quarts and 13 quarts.
The table below shows the automatic transmission oil capacities for the 2013 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.0L 8 Cyl. LZ1 | 4 Spd 2Ml70 | 11.5 Quarts | 13 Quarts | 10.9 Liters | 12.3 Liters |
| 6.2L 8 Cyl. L94 Flex | 6 Spd 6L80 | 6 Quarts | 12.4 Quarts | 5.7 Liters | 11.7 Liters |
2013 Cadillac Escalade Front Differential Oil Capacities
The 2013 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2013 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2013 Cadillac Escalade Transfer Case Oil Capacities
The 2013 Cadillac Escalade has a transfer case oil capacity of 3.2 pints for all configurations.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| MP 3010-NP0 | 3.2 Pints | 1.5 Liters |
| MP 3023/3024 | 3.2 Pints | 1.5 Liters |
2012 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2012 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2012 Cadillac Escalade here.
2012 Cadillac Escalade Engine Oil Capacities
The 2012 Cadillac Escalade engine oil capacity is 6.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.0L 8 Cyl. LZ1 | 6.0 Quarts | 5.7 Liters | 5W-30 |
| 6.2L 8 Cyl. L94 Flex | 6.0 Quarts | 5.7 Liters | 5W-30 |
2012 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2012 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 12.4 quarts and 13 quarts.
The table below shows the automatic transmission oil capacities for the 2012 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.0L 8 Cyl. LZ1 | 4 Spd 2Ml70 | 11.5 Quarts | 13 Quarts | 10.9 Liters | 12.3 Liters |
| 6.2L 8 Cyl. L94 Flex | 6 Spd 6L80 | 6 Quarts | 12.4 Quarts | 5.7 Liters | 11.7 Liters |
2012 Cadillac Escalade Front Differential Oil Capacities
The 2012 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2012 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2012 Cadillac Escalade Transfer Case Oil Capacities
The 2012 Cadillac Escalade has a transfer case oil capacity of 3 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| BW4485-NR3 | 3 Pints | 1.4 Liters |
Popular Oil Capacities
10) Ford Escape
11) Honda Civic
2011 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2011 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2011 Cadillac Escalade here.
2011 Cadillac Escalade Engine Oil Capacities
The 2011 Cadillac Escalade engine oil capacity is 6.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.0L 8 Cyl. LZ1 | 6.0 Quarts | 5.7 Liters | 5W-30 |
| 6.2L 8 Cyl. L94 Flex | 6.0 Quarts | 5.7 Liters | 5W-30 |
2011 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2011 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 12.4 quarts and 13 quarts.
The table below shows the automatic transmission oil capacities for the 2011 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.0L 8 Cyl. LZ1 | 4 Spd 2Ml70 | 11.5 Quarts | 13 Quarts | 10.9 Liters | 12.3 Liters |
| 6.2L 8 Cyl. L94 Flex | 6 Spd 6L80 | 6 Quarts | 12.4 Quarts | 5.7 Liters | 11.7 Liters |
2011 Cadillac Escalade Front Differential Oil Capacities
The 2011 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2011 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2011 Cadillac Escalade Transfer Case Oil Capacities
The 2011 Cadillac Escalade has a transfer case oil capacity of 3 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| BW4485-NR3 | 3 Pints | 1.4 Liters |
2010 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2010 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2010 Cadillac Escalade here.
2010 Cadillac Escalade Engine Oil Capacities
The 2010 Cadillac Escalade engine oil capacity is 6.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.0L 8 Cyl. LZ1 | 6.0 Quarts | 5.7 Liters | 5W-30 |
| 6.2L 8 Cyl. L94 Flex | 6.0 Quarts | 5.7 Liters | 5W-30 |
2010 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2010 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 12.4 quarts and 13 quarts.
The table below shows the automatic transmission oil capacities for the 2010 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.0L 8 Cyl. LZ1 | 4 Spd 2Ml70 | 11.5 Quarts | 13 Quarts | 10.9 Liters | 12.3 Liters |
| 6.2L 8 Cyl. L94 Flex | 6 Spd 6L80 | 6 Quarts | 12.4 Quarts | 5.7 Liters | 11.7 Liters |
2010 Cadillac Escalade Front Differential Oil Capacities
The 2010 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2010 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2010 Cadillac Escalade Transfer Case Oil Capacities
The 2010 Cadillac Escalade has different transfer case oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.2 pints.
The table below shows the transfer case oil capacities for the 2010 Cadillac Escalade.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| BW4485-NR3 | 3 Pints | 1.4 Liters |
| MP3010-NP0 | 3.2 Pints | 1.5 Liters |
| MP3023/3024-NQ | 3.2 Pints | 1.5 Liters |
2009 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2009 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2009 Cadillac Escalade here.
2009 Cadillac Escalade Engine Oil Capacities
The 2009 Cadillac Escalade engine oil capacity is 6.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.0L 8 Cyl. LFA | 6.0 Quarts | 5.7 Liters | 5W-30 |
| 6.2L 8 Cyl. L9H Flex | 6.0 Quarts | 5.7 Liters | 5W-30 |
2009 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2009 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 12.4 quarts and 13 quarts.
The table below shows the automatic transmission oil capacities for the 2009 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.0L 8 Cyl. LFA | 4 Spd 2Ml70 | 11.5 Quarts | 13 Quarts | 10.9 Liters | 12.3 Liters |
| 6.2L 8 Cyl. L9H Flex | 6 Spd 6L80 | 6 Quarts | 12.4 Quarts | 5.7 Liters | 11.7 Liters |
2009 Cadillac Escalade Front Differential Oil Capacities
The 2009 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2009 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2009 Cadillac Escalade Transfer Case Oil Capacities
The 2009 Cadillac Escalade has different transfer case oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.2 pints.
The table below shows the transfer case oil capacities for the 2009 Cadillac Escalade.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| BW 4485-NR3 | 3 Pints | 1.4 Liters |
| MP 3023/3024 | 3.2 Pints | 1.5 Liters |
2008 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2008 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2008 Cadillac Escalade here.
2008 Cadillac Escalade Engine Oil Capacities
The 2008 Cadillac Escalade engine oil capacity, with the 6.2L L92 8 Cyl. engine engine, is 6.0 quarts.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.2L 8 Cyl. L92 | 6.0 Quarts | 5.7 Liters | 5W-30 |
2008 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2008 Cadillac Escalade, with the 6 Spd 6L80 automatic transmission, has an automatic transmission oil capacity of 12.4 quarts.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.2L 8 Cyl. L92 | 6 Spd 6L80 | 6 Quarts | 12.4 Quarts | 5.7 Liters | 11.7 Liters |
2008 Cadillac Escalade Front Differential Oil Capacities
The 2008 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2008 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2008 Cadillac Escalade Transfer Case Oil Capacities
The 2008 Cadillac Escalade has different transfer case oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.2 pints.
The table below shows the transfer case oil capacities for the 2008 Cadillac Escalade.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| BW 4485-NR3 | 3 Pints | 1.4 Liters |
| MP 3023/3024 | 3.2 Pints | 1.5 Liters |
2007 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2007 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2007 Cadillac Escalade here.
2007 Cadillac Escalade Engine Oil Capacities
The 2007 Cadillac Escalade engine oil capacity, with the 6.2L L92 8 Cyl. engine engine, is 6.0 quarts.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.2L 8 Cyl. L92 | 6.0 Quarts | 5.7 Liters | 5W-30 |
2007 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2007 Cadillac Escalade, with the 6 Spd 6L80 automatic transmission, has an automatic transmission oil capacity of 12.4 quarts.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.2L 8 Cyl. L92 | 6 Spd 6L80 | 6 Quarts | 12.4 Quarts | 5.7 Liters | 11.7 Liters |
2007 Cadillac Escalade Front Differential Oil Capacities
The 2007 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2007 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2007 Cadillac Escalade Transfer Case Oil Capacities
The 2007 Cadillac Escalade has different transfer case oil capacities depending on the vehicle's configuration, ranging between 3 pints and 4 pints.
The table below shows the transfer case oil capacities for the 2007 Cadillac Escalade.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| BW4485-NR3 | 3 Pints | 1.4 Liters |
| NV246-NP8 | 4 Pints | 1.9 Liters |
2006 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2006 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2006 Cadillac Escalade here.
2006 Cadillac Escalade Engine Oil Capacities
The 2006 Cadillac Escalade engine oil capacity, with the 6.0L LQ9 8 Cyl. engine engine, is 6.0 quarts.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 6.0L 8 Cyl. LQ9 | 6.0 Quarts | 5.7 Liters | 5W-30 |
2006 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2006 Cadillac Escalade, with the 4 Spd 4L65-E automatic transmission, has an automatic transmission oil capacity of 11.2 quarts.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 6.0L 8 Cyl. LQ9 | 4 Spd 4L65-E | 5 Quarts | 11.2 Quarts | 4.7 Liters | 10.6 Liters |
2006 Cadillac Escalade Front Differential Oil Capacities
The 2006 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2006 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2006 Cadillac Escalade Transfer Case Oil Capacities
The 2006 Cadillac Escalade has different transfer case oil capacities depending on the vehicle's configuration, ranging between 3 pints and 4 pints.
The table below shows the transfer case oil capacities for the 2006 Cadillac Escalade.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| BW 4481-NR3 | 3 Pints | 1.4 Liters |
| BW 4482-NR4 | 3 Pints | 1.4 Liters |
| NVG 246-NP8 | 4 Pints | 1.9 Liters |
2005 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2005 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2005 Cadillac Escalade here.
2005 Cadillac Escalade Engine Oil Capacities
The 2005 Cadillac Escalade engine oil capacity is 6.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 5.3L 8 Cyl. LM7 | 6.0 Quarts | 5.7 Liters | 5W-30 |
| 6.0L 8 Cyl. LQ9 | 6.0 Quarts | 5.7 Liters | 5W-30 |
2005 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2005 Cadillac Escalade has an automatic transmission oil capacity of 11.2 quarts for all transmission configurations.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 5.3L 8 Cyl. LM7 | 4 Spd 4L65-E | 5 Quarts | 11.2 Quarts | 4.7 Liters | 10.6 Liters |
| 6.0L 8 Cyl. LQ9 | 4 Spd 4L65-E | 5 Quarts | 11.2 Quarts | 4.7 Liters | 10.6 Liters |
2005 Cadillac Escalade Front Differential Oil Capacities
The 2005 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2005 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2005 Cadillac Escalade Transfer Case Oil Capacities
The 2005 Cadillac Escalade has a transfer case oil capacity of 3 pints for all configurations.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| BW 4481-NR3 | 3 Pints | 1.4 Liters |
| BW 4482-NR4 | 3 Pints | 1.4 Liters |
2004 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2004 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2004 Cadillac Escalade here.
2004 Cadillac Escalade Engine Oil Capacities
The 2004 Cadillac Escalade engine oil capacity is 6.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 5.3L 8 Cyl. LM7 | 6.0 Quarts | 5.7 Liters | 5W-30 |
| 6.0L 8 Cyl. LQ9 | 6.0 Quarts | 5.7 Liters | 5W-30 |
2004 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2004 Cadillac Escalade has an automatic transmission oil capacity of 11.2 quarts for all transmission configurations.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 5.3L 8 Cyl. LM7 | 4 Spd 4L65-E | 5 Quarts | 11.2 Quarts | 4.7 Liters | 10.6 Liters |
| 6.0L 8 Cyl. LQ9 | 4 Spd 4L65-E | 5 Quarts | 11.2 Quarts | 4.7 Liters | 10.6 Liters |
2004 Cadillac Escalade Front Differential Oil Capacities
The 2004 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2004 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3 Pints | 1.4 Liters |
2004 Cadillac Escalade Transfer Case Oil Capacities
The 2004 Cadillac Escalade has a transfer case oil capacity of 3 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| BW 4481-NR3 | 3 Pints | 1.4 Liters |
2003 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2003 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2003 Cadillac Escalade here.
2003 Cadillac Escalade Engine Oil Capacities
The 2003 Cadillac Escalade engine oil capacity is 6.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 5.3L 8 Cyl. LM7 | 6.0 Quarts | 5.7 Liters | 5W-30 |
| 6.0L 8 Cyl. LQ9 | 6.0 Quarts | 5.7 Liters | 5W-30 |
2003 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2003 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 11.2 quarts and 13.5 quarts.
The table below shows the automatic transmission oil capacities for the 2003 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 5.3L 8 Cyl. LM7 | 4 Spd 4L65-E | 5 Quarts | 11.2 Quarts | 4.7 Liters | 10.6 Liters |
| 5.3L 8 Cyl. LM7 | 4 Spd 4L80-E | 7.7 Quarts | 13.5 Quarts | 7.3 Liters | 12.8 Liters |
| 6.0L 8 Cyl. LQ9 | 4 Spd 4L65-E | 5 Quarts | 11.2 Quarts | 4.7 Liters | 10.6 Liters |
| 6.0L 8 Cyl. LQ9 | 4 Spd 4L80-E | 7.7 Quarts | 13.5 Quarts | 7.3 Liters | 12.8 Liters |
2003 Cadillac Escalade Front Differential Oil Capacities
The 2003 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2003 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3.4 Pints | 1.6 Liters |
2003 Cadillac Escalade Transfer Case Oil Capacities
The 2003 Cadillac Escalade has a transfer case oil capacity of 3 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| BW4481-NR3 | 3 Pints | 1.4 Liters |
2002 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2002 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2002 Cadillac Escalade here.
2002 Cadillac Escalade Engine Oil Capacities
The 2002 Cadillac Escalade engine oil capacity is 6.0 quarts for all engine configurations.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 5.3L 8 Cyl. LM7 | 6.0 Quarts | 5.7 Liters | 5W-30 |
| 6.0L 8 Cyl. LQ9 | 6.0 Quarts | 5.7 Liters | 5W-30 |
2002 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2002 Cadillac Escalade has different automatic transmission oil capacities depending on the vehicle's transmission configuration, ranging between 11.2 quarts and 13.5 quarts.
The table below shows the automatic transmission oil capacities for the 2002 Cadillac Escalade.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 5.3L 8 Cyl. LM7 | 4 Spd 4L65-E | 5 Quarts | 11.2 Quarts | 4.7 Liters | 10.6 Liters |
| 5.3L 8 Cyl. LM7 | 4 Spd 4L80-E | 7.7 Quarts | 13.5 Quarts | 7.3 Liters | 12.8 Liters |
| 6.0L 8 Cyl. LQ9 | 4 Spd 4L65-E | 5 Quarts | 11.2 Quarts | 4.7 Liters | 10.6 Liters |
| 6.0L 8 Cyl. LQ9 | 4 Spd 4L80-E | 7.7 Quarts | 13.5 Quarts | 7.3 Liters | 12.8 Liters |
2002 Cadillac Escalade Front Differential Oil Capacities
The 2002 Cadillac Escalade has different front differential oil capacities depending on the vehicle's configuration, ranging between 3 pints and 3.6 pints.
The table below shows the front differential oil capacities for the 2002 Cadillac Escalade.
| Front Differential Type | Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|---|
| 9.25 RG | 3.6 Pints | 1.7 Liters |
| F4WD | 3 Pints | 1.4 Liters |
| S4WD | 3.4 Pints | 1.6 Liters |
2002 Cadillac Escalade Transfer Case Oil Capacities
The 2002 Cadillac Escalade has a transfer case oil capacity of 4.9 pints.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| NV149-NP3 | 4.9 Pints | 2.3 Liters |
2000 Cadillac Escalade Oil Capacities
The oil capacity data we have for the 2000 Cadillac Escalade includes the engine oil, the automatic transmission, the front differential, and the transfer case.
Go to our more detailed oil capacity data for the 2000 Cadillac Escalade here.
2000 Cadillac Escalade Engine Oil Capacities
The 2000 Cadillac Escalade engine oil capacity, with the 5.7L L31 8 Cyl. engine engine, is 6.0 quarts.
| Engine | Engine Oil Capacity (Imp.) | Engine Oil Capacity (Metric) | Engine Oil Viscosity |
|---|---|---|---|
| 5.7L 8 Cyl. L31 | 6.0 Quarts | 5.7 Liters | 5W-30 |
2000 Cadillac Escalade Automatic Transmisson Oil Capacities
The 2000 Cadillac Escalade, with the 4 Spd 4L60-E automatic transmission, has an automatic transmission oil capacity of 11.2 quarts.
| Engine | Automatic Transmission Type | Automatic Transmission Initial Fill (Imp.) | Automatic Transmission Total Fill (Imp.) | Automatic Transmission Initial Fill (Metric) | Automatic Transmission Total Fill (Metric) |
|---|---|---|---|---|---|
| 5.7L 8 Cyl. L31 | 4 Spd 4L60-E | 5 Quarts | 11.2 Quarts | 4.7 Liters | 10.6 Liters |
2000 Cadillac Escalade Front Differential Oil Capacities
The 2000 Cadillac Escalade has a front differential oil capacity of 3.6 pints.
| Front Differential Total Fill (Imp.) | Front Differential Total Fill (Metric) |
|---|---|
| 3.6 Pints | 1.7 Liters |
2000 Cadillac Escalade Transfer Case Oil Capacities
The 2000 Cadillac Escalade has different transfer case oil capacities depending on the vehicle's configuration, ranging between 4 pints and 4.4 pints.
The table below shows the transfer case oil capacities for the 2000 Cadillac Escalade.
| Transfer Case Type | Transfer Case Total Fill (Imp.) | Transfer Case Total Fill (Metric) |
|---|---|---|
| NVG 241-NP2 | 4.4 Pints | 2.1 Liters |
| NVG 243-NP1 | 4.4 Pints | 2.1 Liters |
| NVG 246-NP8 | 4 Pints | 1.9 Liters |
AutoPadre.com does not guarantee the accuracy of the above information is accurate. Please consult the owner's manual to confirm.
About AutoPadre.com
AutoPadre.com is a website that provides our users with real world data to help them make educated car buying decisions.
AutoPadre.com's main aim is to be helpful by providing vehicle specifications and data in an easy to digest manner.
Post Written By AutoPadre
Post Written By AutoPadre
